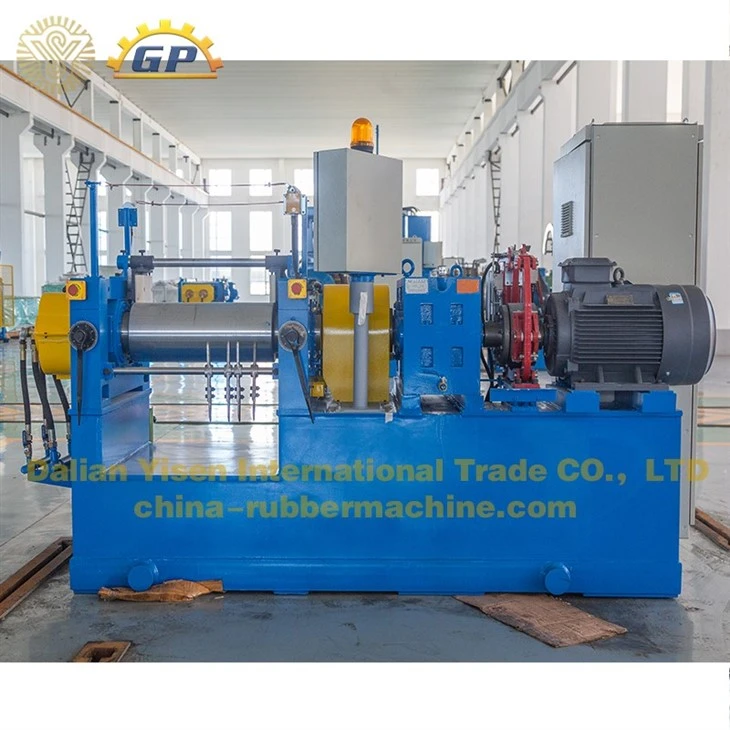

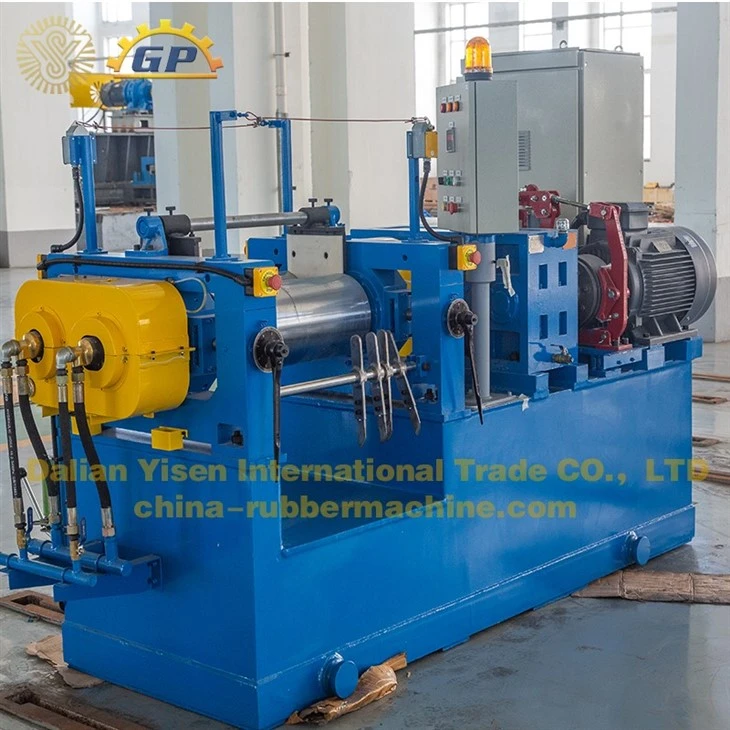

roll dia:250mm
width:1000mm
roll bearing
hardness reducer
hydraulic stock guide
MAIN TECHNICAL SPECIFICATION OF TWO ROLL MILLMACHINE
|
型 型号Mode 项目Item |
开炼机 |
XK-160 |
XK-250 |
XK-300 |
XK-360 |
XK-400 |
XK-450 |
XK-550 |
XK-560 |
XK-610 |
XK-660 |
XK-710 |
|
|
辊筒直径 ROLL DIAMETER |
MM |
160 |
250 |
300 |
360 |
400 |
450 |
550 |
560-510 |
610 |
660 |
710 |
|
|
工作长度 ROLL WORKING LENGTH |
MM |
320 |
620 |
750 |
900 |
1000 |
1200 |
1500 |
1530 |
1930 |
2130 |
2200 |
|
|
前辊线速度 FRONT ROLL LINEAR SPEED |
m/min |
9 |
17.4 |
15.73 |
16.7 |
18.65 |
21.8 |
22.5 |
26.4 |
30.5 |
28 |
31.9 |
|
|
前后辊速比 SPEED RATIO OF ROLL |
|
1:1.35 |
1:1.1 |
1:1:17 |
1:1.25 |
1:1.27 |
1:1.27 |
1:1.2 |
1:1.2 |
1:1:1 |
1:1:24 |
1:1:51 |
|
|
最大辊距 MAX ROLL SPACE |
MM |
4.5 |
8 |
10 |
10 |
10 |
12 |
16 |
15 |
15 |
15 |
15 |
|
|
一次加料量 FEEDING CAPACITY |
KG |
1-2 |
10-15 |
10-20 |
20-25 |
18-35 |
50 |
50-65 |
50-65 |
140 |
165 |
190 |
|
|
电机功率 MOTOR POWER |
KW
|
5.5 |
18.5 |
22 |
30 |
45 |
55 |
110 |
90 |
160 |
185/250 |
280 |
|
|
外形尺寸 DIMENSION (长*宽*高) |
L |
MM |
1133 |
3300 |
4000 |
4200 |
4550 |
5150 |
6300 |
6050 |
6575 |
6700 |
8185 |
|
W |
MM |
920 |
1115 |
1600 |
1780 |
1850 |
1790 |
2230 |
2282 |
2910 |
3400 |
3910 |
|
|
H |
MM |
11394 |
1345 |
1800 |
1760 |
1760 |
1830 |
1900 |
1900 |
2000 |
2100 |
2270 |
|
|
约重 GROSS WEIGHT |
T |
~2 |
~3.2 |
~8.3 |
~6.5 |
~8.3 |
~11.4 |
~22 |
~22.5 |
~44 |
~49 |
~59 |
|
